A concrete mixer is a type of construction machinery used to mix cement, water, and aggregates (such as gravel or sand) to produce concrete for construction. Concrete mixers come in various types, including truck-mounted, portable, and stationary. Truck-mounted mixers are typically used for large construction projects, while portable mixers are more commonly used for small to medium-sized projects. Stationary mixers are typically used for precast concrete applications or large construction sites requiring a continuous supply of concrete. Concrete mixers have revolutionized the construction industry by making the concrete mixing process faster, more efficient, and more consistent.
Mixer (Model: JBJ-1500)
The brick making mixer is the critical equipment in the brick production line responsible for the uniform mixing of raw materials. Its performance directly impacts the quality and strength of the bricks. Depending on the working principles and application scenarios, it can be configured in various forms.
Parameter Information:
Vertical Brick Block Mixer (JS Series )
| Item | JS 500 | JS 750 | JS 1000 | JS 1500 |
| Output capacity | 500L | 750L | 1000L | 1500L |
| Input capacity | 800L | 1200L | 1500L | 2400L |
| Speed | ≥25m³/h | ≥37m³/h | ≥50m³/h | ≥75m³/h |
| Max aggregate size | ≤60/40 | ≤80/60 | ≤80/60 | ≤80/60 |
| Power | 26KW | 39KW | 45KW | 39KW |
| Weight | 4000KG | 6800KG | 10000KG | 6800KG |

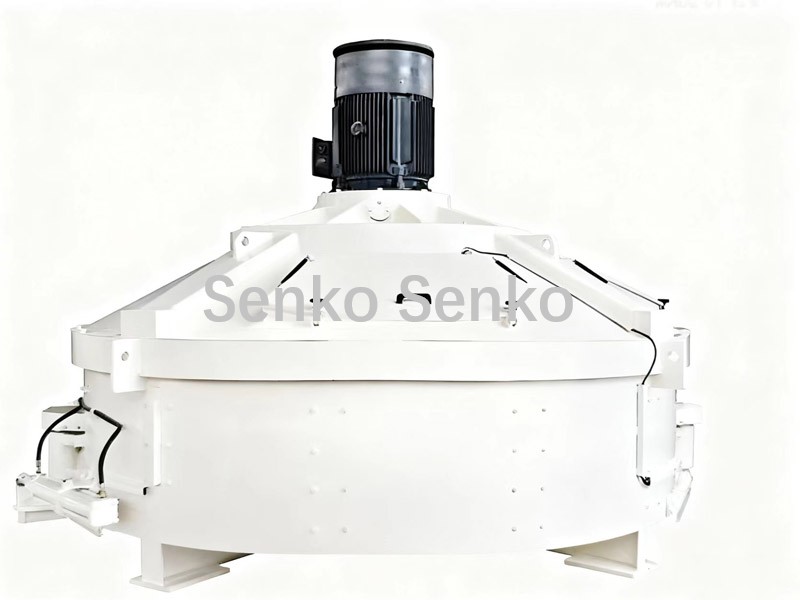

Planetary Brick Block Mixer (DMP series)
| ITEM | 250 | 500 | 750 | 1000 | 1500 | 2000 | 2500 |
| Input Volume | 375L | 750L | 1125L | 1500L | 2250L | 3000L | 3750L |
| Input Weight | 600KG | 1200KG | 1800KG | 2400KG | 3600KG | 4800KG | 6000KG |
| Output Weight | 250L | 500L | 750L | 1000L | 1500L | 2000L | 2500L |
| Mixing Power | 11KW | 19KW | 30KW | 37KW | 55KW | 75KW | 90KW |
| Unload Power | 0 | 2.2KW | 2.2KW | 3KW | 3KW | 4KW | 4KW |
| Weight | 1500KG | 2500KG | 3500KG | 5500KG | 6500KG | 8500KG | 10500KG |
Product Advantages:
Planetary mixers are driven by a mixing motor and a planetary gear reducer. The internal gears drive the reducer housing to revolve around the sun, while one or two sets of planetary arms on the reducer rotate on their own axis. This allows for 360° rotation and mixing within the mixer, enabling rapid and high-quality uniform mixing of materials. By using different clamps and materials, it can meet the needs of a wide range of mixing applications.Vertical brick-making machine mixers are mainly used to mix raw materials such as sand, cement, and water with various additives such as fly ash, lime, and limestone to form a homogeneous mixture, which is then fed into the brick-making machine for shaping. The mixer typically consists of a large bucket or container with multiple blades or paddles that rotate to thoroughly mix the materials. Some vertical brick-making machine mixers also include a control system that allows the operator to adjust mixing time, speed, and other parameters to ensure optimal mixing quality.Vertical brick mixers are widely used in the dry brick industry, especially in the production of concrete bricks, silage, or cement. They can also be used to mix other materials for construction purposes or in other industries where a uniform mixture of different materials is required.
Finished Products:
Application Scenarios:
