The upper-rotating, sword-piercing strapping machine is an automated strapping device specifically designed for bricks/blocks. It cleverly combines top-rotating and sword-piercing technologies to efficiently and securely strap brick stacks. The machine head (strapping mechanism) can move up and down along a vertical track, flexibly adapting to different stacking heights. Simultaneously, a rod-shaped mechanism called a "sword" precisely passes through the space at the bottom of the pallet from one side of the machine, working in conjunction with the machine head to complete the wrapping of the strapping, achieving a crisscross pattern of strapping to the brick stack.
Upper Rotary Packing Machine (Model: DBJ1200U)
The PLC provides core control, and in conjunction with sensors such as photoelectric switches, it can automatically detect the position of packages and optimize strapping parameters to achieve high-precision strapping. It offers fast strapping speed and can provide a clamping force of up to 300KN, ensuring the stability of brick stacks during transportation. Its modular metal arch frame design is also robust and durable. This strapping machine is ideal for modern block brick production lines, efficiently handling the end-of-line strapping of aerated concrete blocks and other building blocks. Through automated strapping, the equipment can operate continuously for extended periods, significantly saving labor, improving production line efficiency, and reducing brick breakage rates during the strapping process. It is an ideal choice for building materials companies to achieve intelligent upgrades.
Rotating Mechanism
With the brick/block stack stationary, the packing head and sling slot on the frame slide back and forth to horizontally bundle the items with PET strapping. Then, the packing head and sling slot rotate 90° to vertically bundle the items with PET strapping.

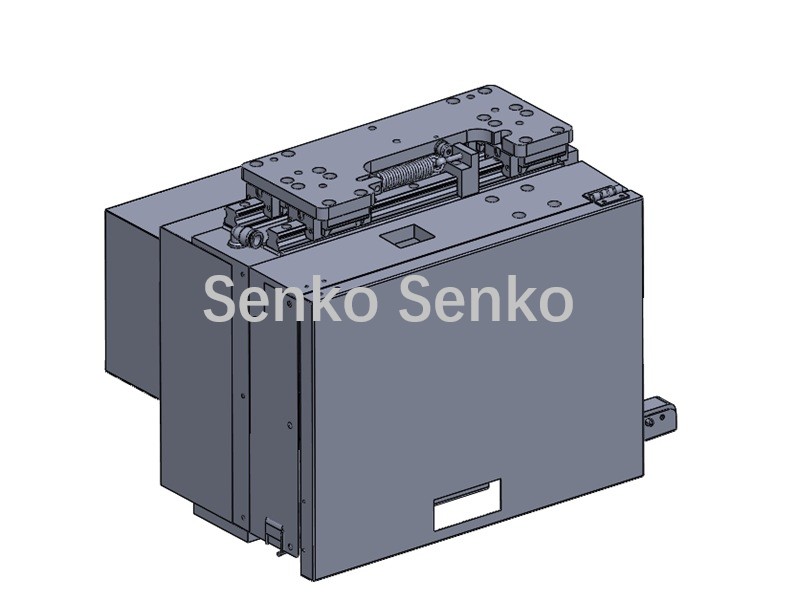

Friction Heat Melting Head
This unit integrates servo-driven strap feeding, tightening, strap cutting, and high-speed rotating friction bonding. It can achieve a strapping force of up to 300KN and can move up and down to adapt to different stacking heights.

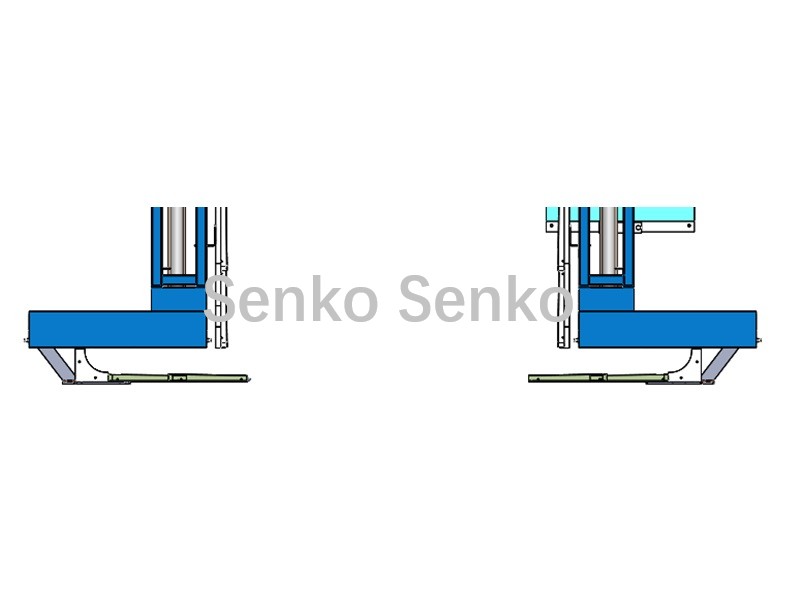

Sling Mechanism
A retractable sling passes through the bottom of the pallet, working in conjunction with the head to form a closed-loop bundling path.

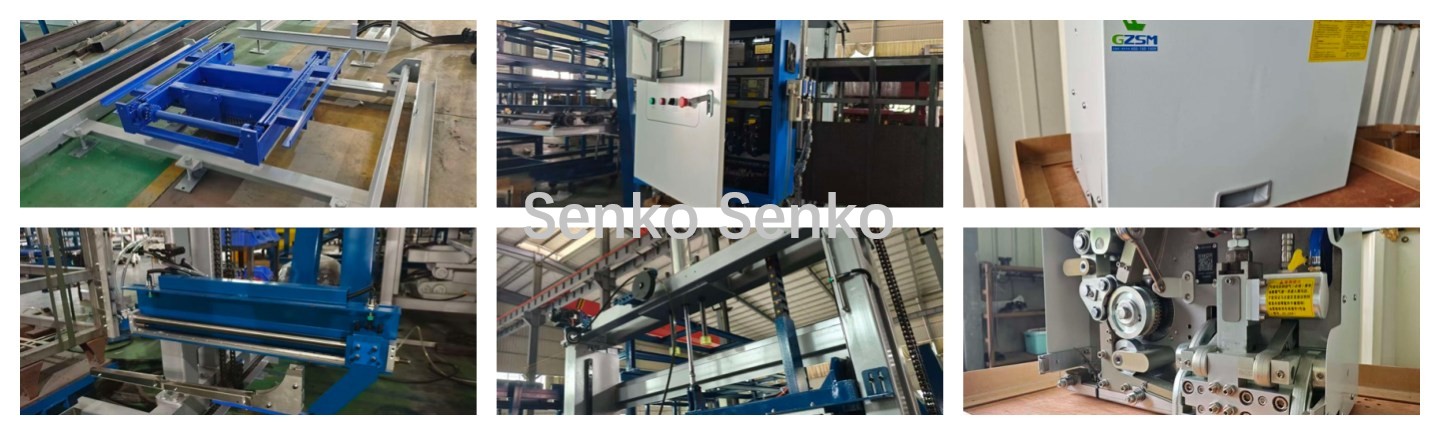

Structure Display:
Parameter Information:
| Item | DBJ1200U |
| Equipment Size | 2600×4200×3250mm |
| Power Supply | Three-phase 380V/50-60HZ |
| Power | 6KW |
| Total Weight | 2T |
| Maximum Tightening Force | 3500N (Adjustable) |
| Strapping Speed | 2-4.2m/s (Adjustable) |
| Binding Cycle | 180 seconds/stack |
| Binding Size | 1200×1200mm (Customizable) |
| Binding Height | 900-1400mm (Customizable) |
| Strapping Strap Material | Machine-grade PET strapping |
| Strapping Strap Specifications | Width (15mm) × Thickness (0.8mm) |
| Top Rotary Disc Motor Power | 2.0KW |
| Walking Planetary Gear Reducer | 1.0KW |
| Payment | T/T or L/C at sight |
| Product Origin | Quanzhou, Fujian, China |
| Shipping Port | Xiamen |
| Lead Time | 15 days |

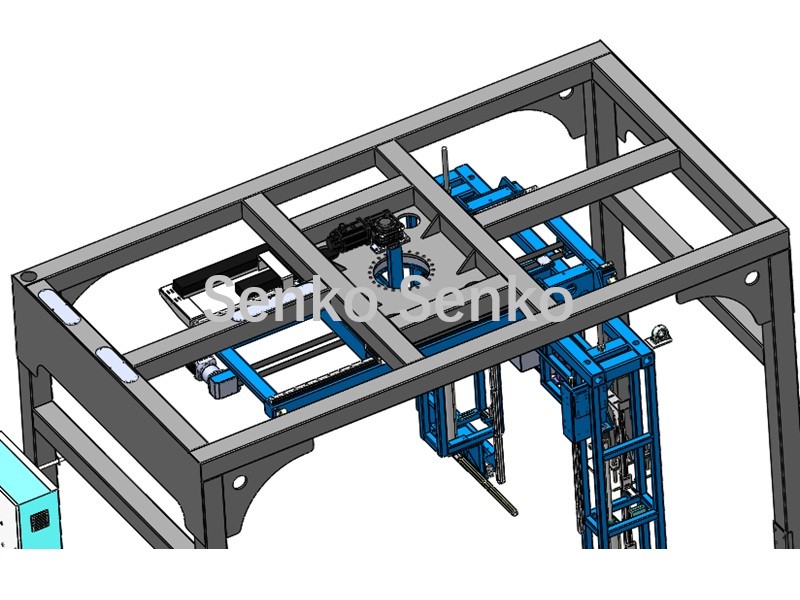

Layout of Project
| 1,Friction Heat Melting Head | 2,Strips Releaser | 3, Sling groove |
| 4,Sling Machanism | 5, E-control cabinet | 6,Operation button |
| 7,Translation guide rail | 8,Rotating turntable support | 9, Sling tray |
Product Advantages:
1. Digital intelligent strapping head, no strapping selection or breakage, tension force can be adjusted arbitrarily by CNC;
2. Servo control, touch screen, simple and quick operation;
3. Replaces two people for manual strapping and packaging, mechanized operation;
4. Pneumatic friction bonding, stable and easy to maintain.

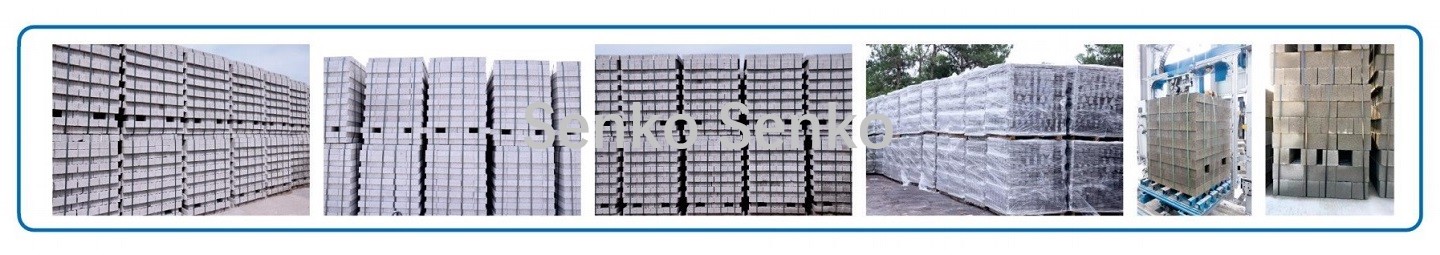

Stacked Cured Products:
