A film wrapping machine is a device used to automatically wrap finished products stacked on pallets with plastic film. Using LLDPE stretch film (a type of linear low-density polyethylene stretch film), the bricks are tightly wrapped around the pallet, providing fixation, preventing spillage, dust protection, and moisture protection. Controlled by a PLC (Programmable Logic Controller), it can automatically complete processes such as wrapping, lifting, and film cutting. The film holder typically has a pre-stretch function (pre-stretch rate up to 250%-300%), effectively saving film consumption. The packaging height and number of wrapping layers are adjustable to accommodate different brick sizes and packaging requirements.
Automatic Film Wrapping Machine (Model: RMJ1200)
A plastic film with a certain binding force is wrapped around the stacked brick piles from low to high and then back to low. The brick piles are not placed directly in the open air. The subsequent curing effectively keeps them warm and moist, and effectively improves the strength of the product.

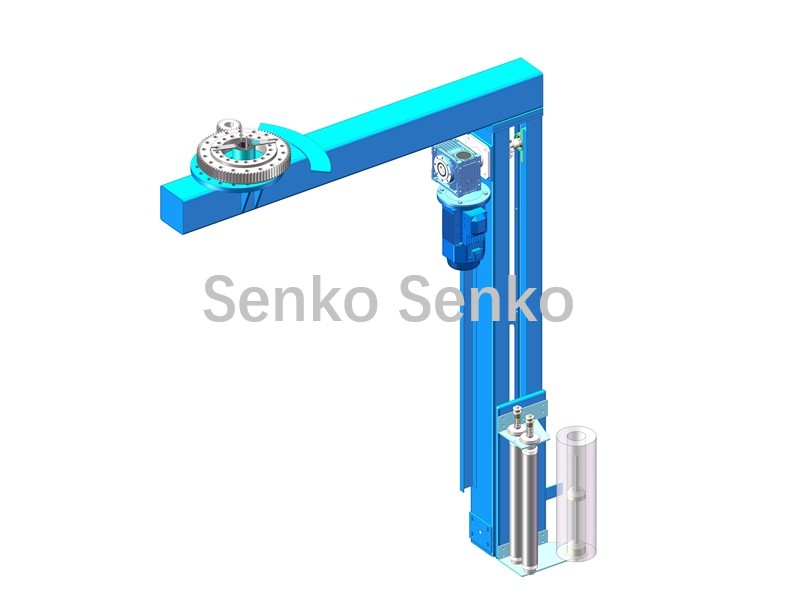

Rotating Device
The film is mounted on a height-adjustable swing arm, which rotates 360° continuously around the products on the tray, ensuring the film is evenly wrapped around the outer surface of the finished product.

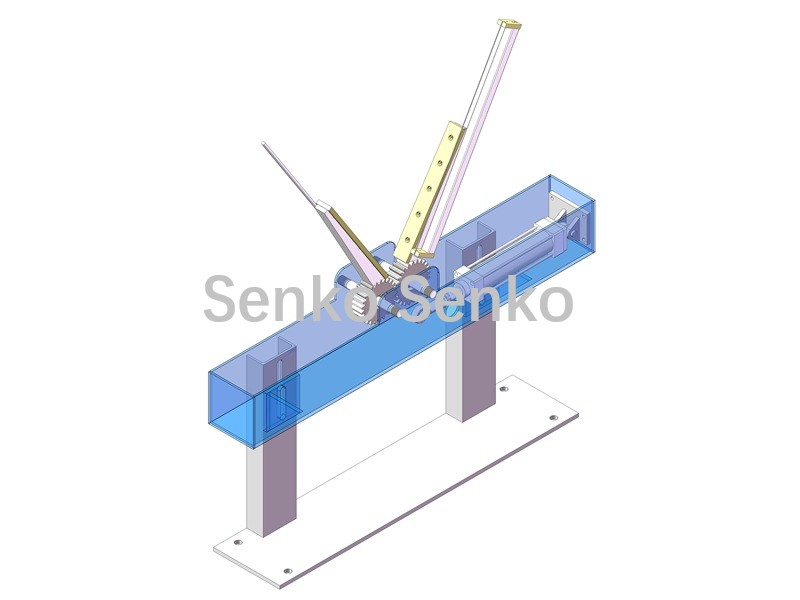

Film Cutting Device
After wrapping, the device slowly rotates to the cutting point, cutting the film with scissors while simultaneously blowing air to finish the process.

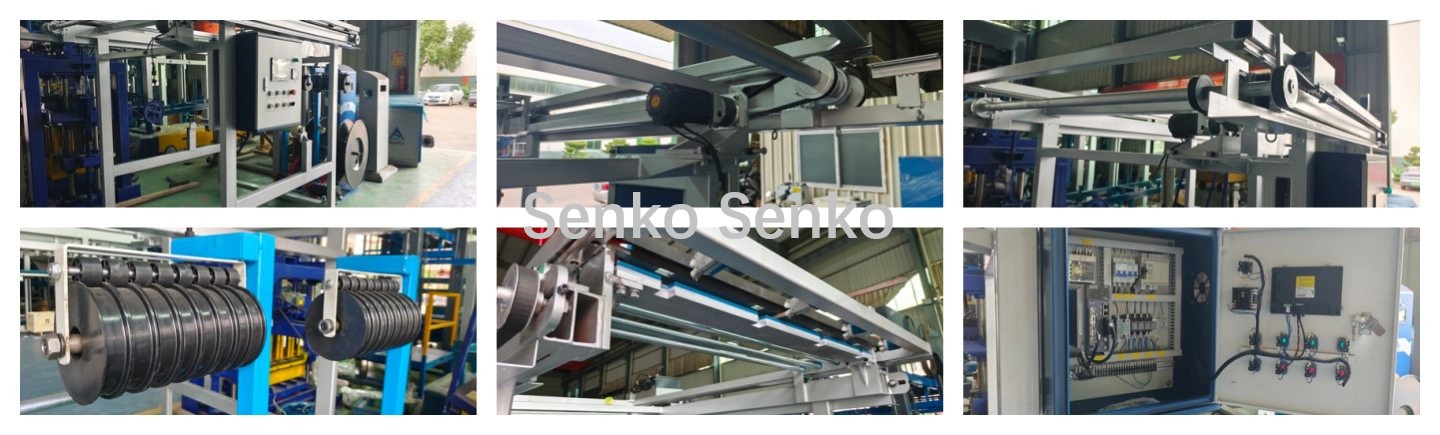

Structure Display:
Parameter Information:
| Item | RMJ1200 |
| Equipment Size | 3400×1900×3125mm |
| Stretch Wrap Film Size | 1200×1200mm |
| Stretch Wrapping Height | 1500mm |
| Power Supply | Three-phase 380V/50-60Hz |
| Cantilever Acceleration | Variable Frequency Speed Control |
| Lifting Speed | Variable Frequency Speed Control |
| Applicable Stretch Wrap Film Specifications | 50cm wide, paper core inner diameter 76mm, roll diameter less than 250mm |
| Rotary Motor Power | 0.75KW |
| Lifting Motor Power | 0.75KW |
| Payment | T/T or L/C at sight |
| Product Origin | Quanzhou, Fujian, China |
| Shipping Port | Xiamen |
| Lead Time | 15 days |

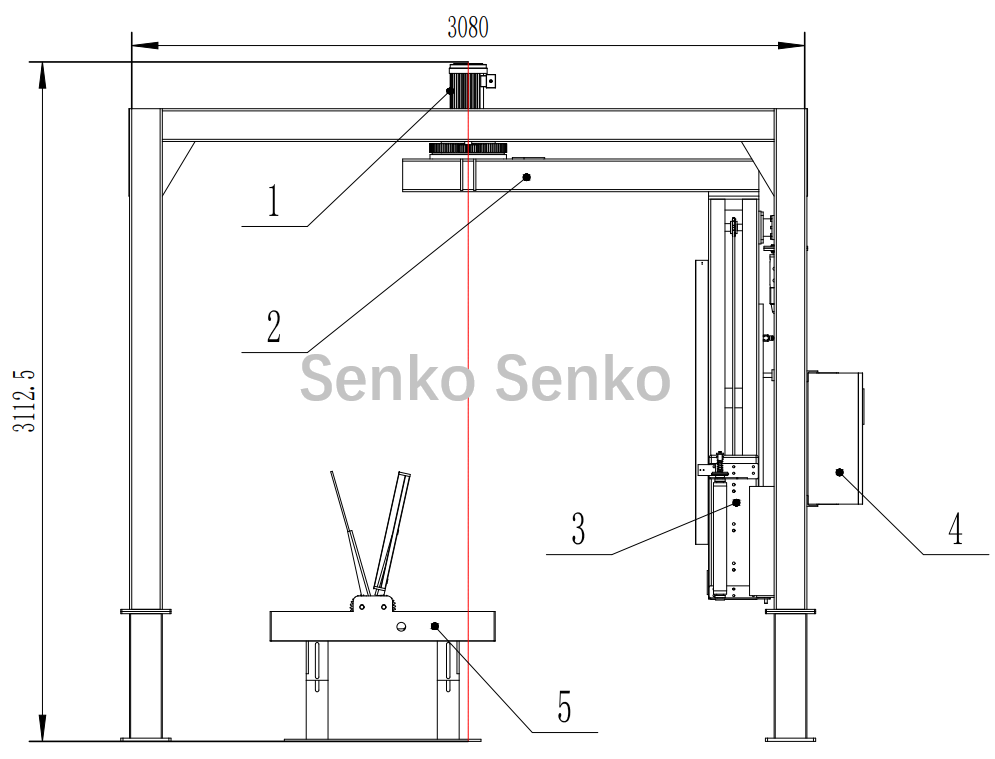

Layout of Project
| 1,Rotary Motor | 2,Rotary Rack | 3,Lifting Rack | 4,E-control Cabinet | 5,Film cutter |
Product Advantages:
1. Improved Packaging Efficiency: Compared to manual film wrapping, the brick stack wrapping machine can complete packaging tasks quickly and efficiently, significantly saving time and labor costs.
2. Superior Packaging Effect: It can evenly and tightly wrap the film around the brick stack, effectively preventing the bricks from being affected by dust, moisture, collisions, and other factors during transportation and storage, maintaining the quality and integrity of the bricks.
3. Simple Operation: Adopting an automated control system, operators only need to perform simple settings and operations to start the equipment and complete the film wrapping work.
4. High Adjustability: It can adjust parameters such as the number of wrapping turns, film tension, and packaging speed according to the size, shape, and packaging requirements of the brick stack to adapt to different production needs.
Stacked Cured Products:
