Lower Rotary Packing/Stripping Machine

Lower Rotary Packing Machine (Model: DBJ1200D)

Through the precise coordination of these two actions, the packing straps can tightly bind the entire brick stack to the pallet from top to bottom and from left to right, forming a stable "well"-shaped structure that facilitates transportation and storage. PLC, along with sensors such as photoelectric switches, enables automatic detection and precise binding. The packing speed is fast, providing a binding force of up to 300KN or even higher, ensuring the stability of the brick stack during transportation. The main structure typically uses durable materials such as metal to ensure the stability of the equipment under heavy loads and continuous operating environments.
The dimensions of the equipment's frame and table height can be customized to suit different pallet sizes and products. This baling machine is ideal for modern block brick production lines, efficiently handling the final packaging of aerated concrete blocks, cement bricks, paving bricks, and other products. Through automated strapping, the equipment can operate continuously for extended periods, significantly reducing labor costs, improving production line efficiency, and lowering the breakage rate of bricks during transportation.

Working Principle:

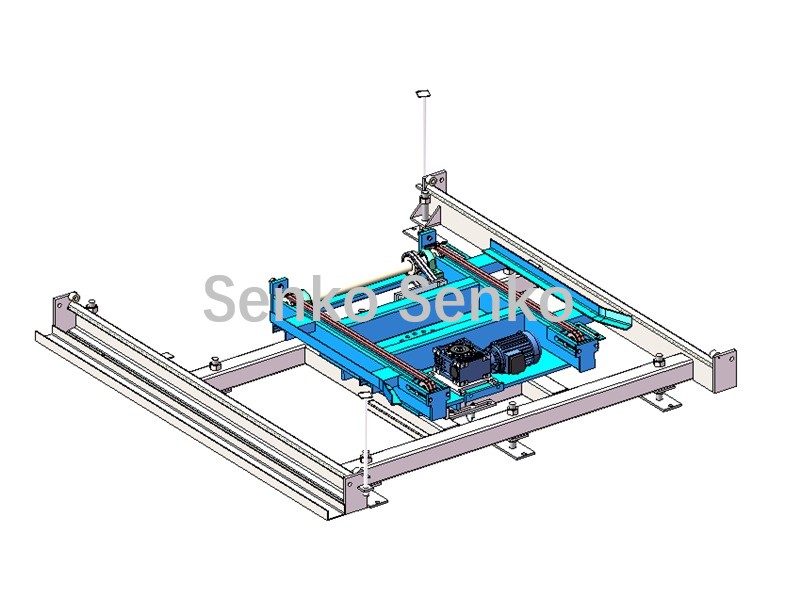

Rotating Mechanism

The packing head and sling slot on the transverse frame slide back and forth, repeatedly binding and packaging the brick stack with PET plastic strapping. Then, the bottom rotating mechanism rotates the brick/block stack 90°, and the packing head and sling slot on the transverse frame continue to slide back and forth, repeatedly binding and packaging the rotated brick/block stack.

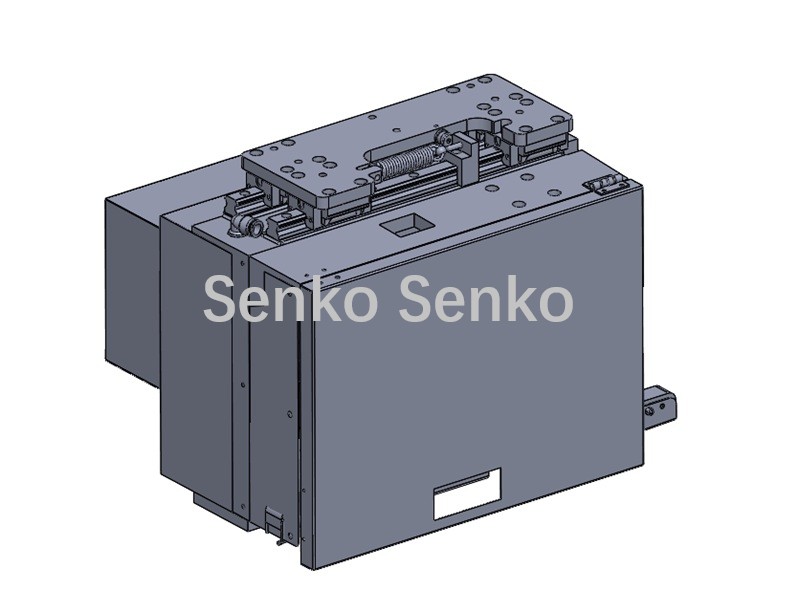

Friction Heat Melting Head

This machine integrates servo feeding, tightening, tape cutting, and high-speed rotating friction bonding, achieving a binding force of up to 300KN for the plastic strapping. It can also move up and down to adapt to different stacking heights.

Sling Mechanism

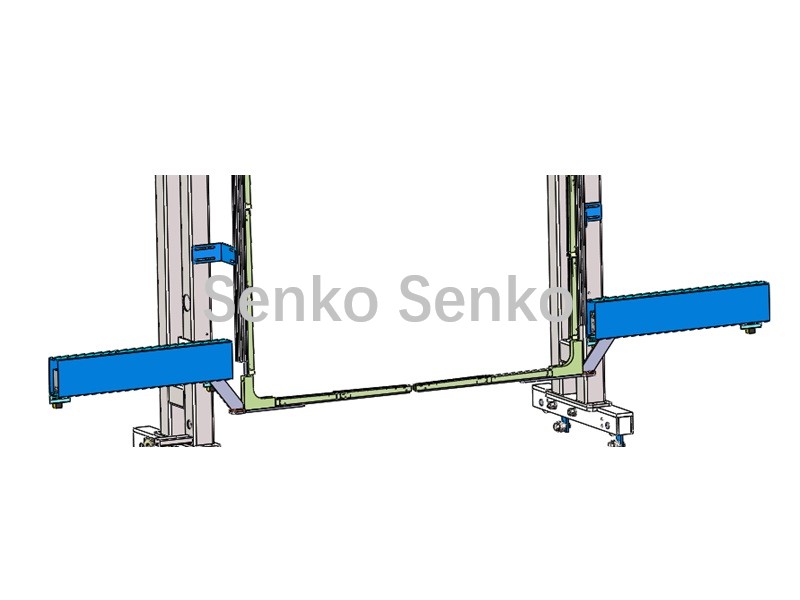

A retractable sling passes through the bottom of the pallet, working in conjunction with the machine head to form a closed-loop binding path.

Structure Display:




Parameter Information:

Item	DBJ1200D
Equipment Size	3500×2300×3750mm
Power Supply	Three-phase 380V/50-60HZ
Power	6.25KW
Total Weight	2T
Maximum Tightening Force	3500N (Adjustable)
Strapping Speed	2-4.2m/s (Adjustable)
Binding Cycle	180 seconds/stack
Binding Size	1200×1200mm (Customizable)
Binding Height	900-1400mm (Customizable)
Strapping Strap Material	Machine-grade PET strapping
Strapping Strap Specifications	Width (15mm) × Thickness (0.8mm)
Rotating Disc Motor Power	0.75KW
Motor Power	2.0KW
Payment	T/T or L/C at sight
Product Origin	Quanzhou, Fujian, China
Shipping Port	Xiamen
Lead Time	15 days

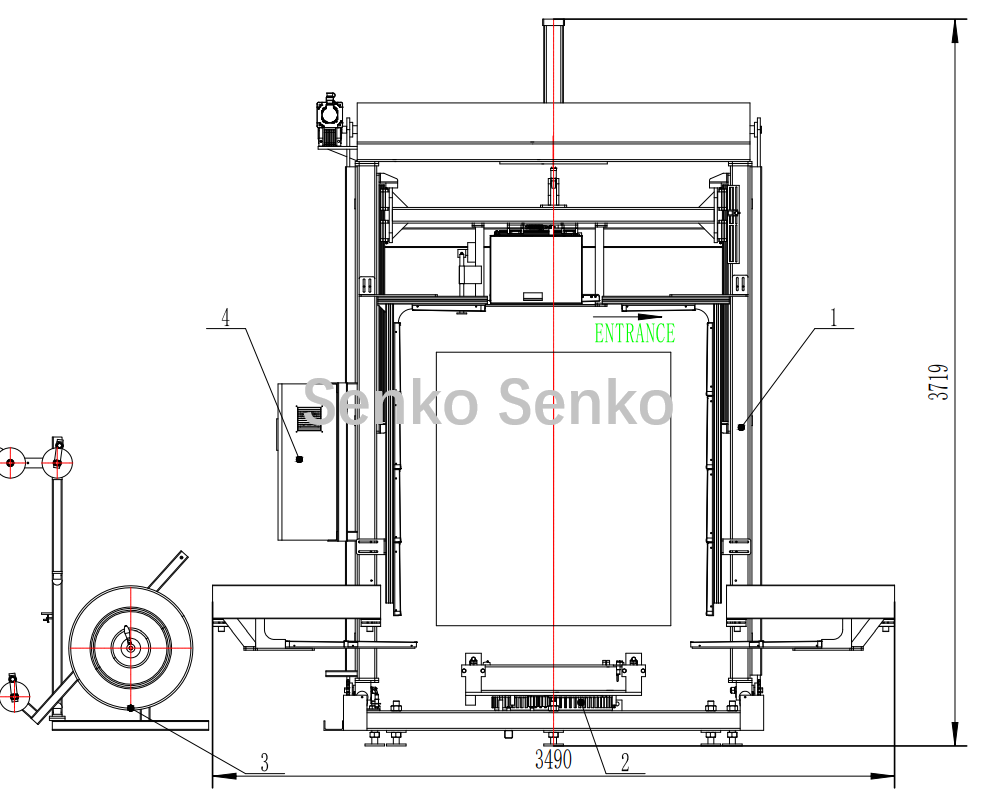

Layout of Project

1,Friction Heat Melting Head

2,Conveyor Rotary Table

3, Strips Releaser

4,E-control Cabinet



Product Advantages:

1. Digital intelligent strapping head, no strapping selection or breakage, tension force can be adjusted arbitrarily by CNC;

2. Servo control, touch screen, simple and quick operation;

3. Replaces two people for manual strapping and packaging, mechanized operation;

4. Pneumatic friction bonding, stable and easy to maintain.

Stacked Cured Products:
